BM130 - BM131

Ultra-kompakter IPC zur Buchmontage basierend auf der Intel Apollo Lake-Plattform

Modelle

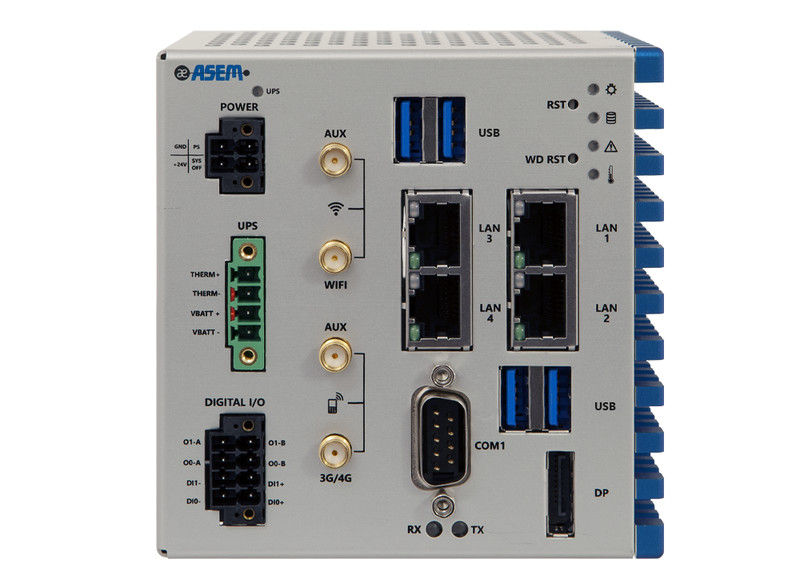

BM130

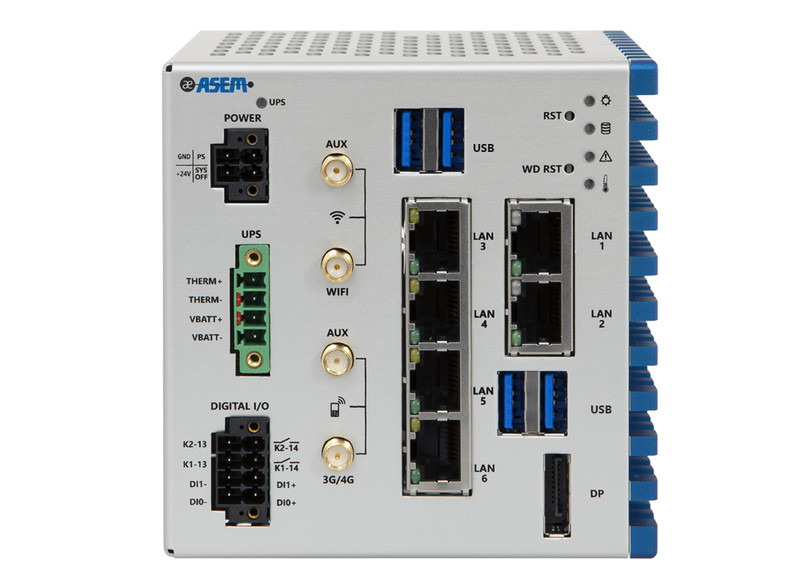

BM131

Technical Data

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

4 x RJ45 ports
(4 x Intel® I210)

10/100/1000 Mbps Ethernet switch

-

USB

4 x USB 3.0
(Type-A)

SERIAL

1 x RS232/422/485 (DB15M)

WI-FI

Standard

IEEE 802.11 a/b/g/n + Bluetooth V4.0 LE/
V3.0+HS/ V2.1+EDR

Features

Client / Access Point mode (Wi-Fi)

Security

64/128-Abits WEP, WPA, WPA2

Rx Sensitivity

802.11a: -73dBm / 802.11g: -74dBm /
802.11n(2,4GHz): -72dBm@HT20,
-69dBm@HT40 / 802.11n(5GHz): -69dBm@HT20,
-68dBm@HT40 (Wi-Fi)
<0.1% BER at -70dBm (Bluetooth)

Antenna

2 x RP-SMA-F

CELLULAR NETWORK

Standard

  • Standards: 2G/3G/3G + EDGE/HSPA
    up to 5,76Mbps upload / 21,6Mbps download
    Regions: All Continents

  • Standards: 2G/3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: Europe, Latin America, Asia, Africa,
    Oceania

  • Standards: 3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: North America, Latin America

Antenna

1 x SMA-F connector

SIM

1x SIM card socket push-push type

DIGITAL INPUT

2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

24VDC (18÷32VDC) isolated

Remote power up input
Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book, wall or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x100mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, cULus LISTED (61010) pending

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

2 x RJ45 ports
(2 x Intel® I210)

10/100/1000 Mbps Ethernet switch

1 x unmanaged
(Intel® I210)
4 x RJ45 ports

USB

4 x USB 3.0
(Type-A)

SERIAL

-

WI-FI

Standard

IEEE 802.11 a/b/g/n + Bluetooth V4.0 LE/
V3.0+HS/ V2.1+EDR

Features

Client / Access Point mode (Wi-Fi)

Security

64/128-Abits WEP, WPA, WPA2

Rx Sensitivity

802.11a: -73dBm / 802.11g: -74dBm /
802.11n(2,4GHz): -72dBm@HT20,
-69dBm@HT40 / 802.11n(5GHz): -69dBm@HT20,
-68dBm@HT40 (Wi-Fi)
<0.1% BER at -70dBm (Bluetooth)

Antenna

2 x RP-SMA-F

CELLULAR NETWORK

Standard

  • Standards: 2G/3G/3G + EDGE/HSPA
    up to 5,76Mbps upload / 21,6Mbps download
    Regions: All Continents

  • Standards: 2G/3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: Europe, Latin America, Asia, Africa,
    Oceania

  • Standards: 3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: North America, Latin America

Antenna

1 x SMA-F connector

SIM

1x SIM card socket push-push type

DIGITAL INPUT


2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

  • 24VDC (18÷32VDC) isolated

  • Remote power up input
    Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book, wall or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x100mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, cULus LISTED (61010) pending
