BM120 - BM121 - BM122

Ultra-compact book mounting IPC based on Intel Apollo lake platform

Models

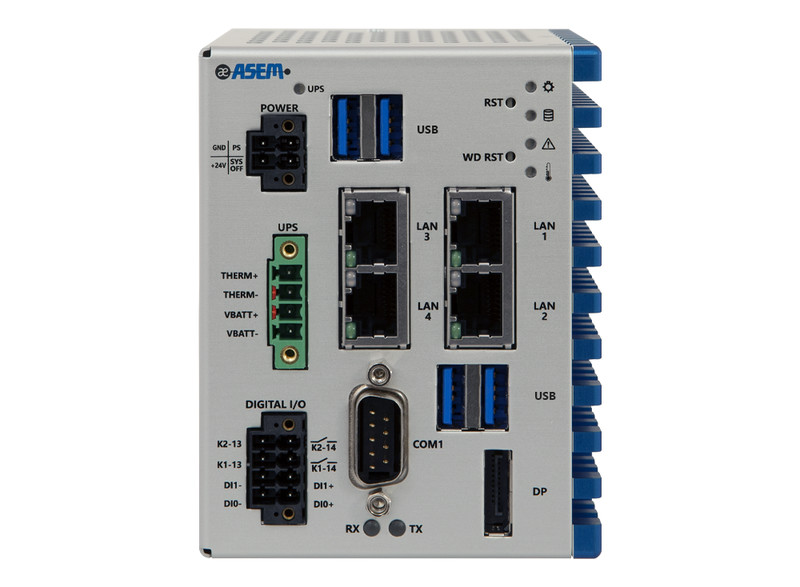

BM120

Interfaces:

4 x Ethernet 10/100/1000Mbps

4 x USB 3.0

1 x RS232/422/485

1 x Display Port dual mode

2 x digital output

2 x digital input

Options:

UPS with external battery pack

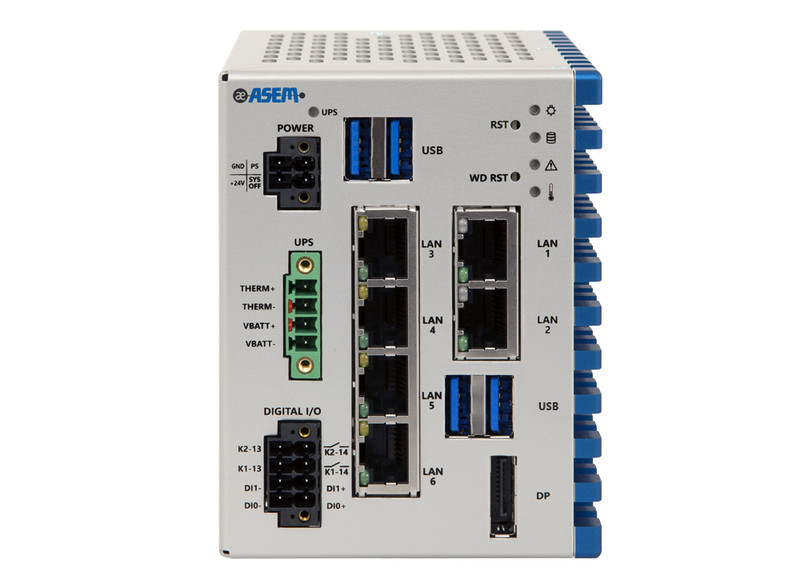

BM121

Interfaces:

2 x Ethernet 10/100/1000Mbps

1 x Ethernet 10/100/1000Mbps 4 ports Switch

4 x USB 3.0

1 x Display Port dual mode

2 x digital output

2 x digital input

Options:

UPS with external battery pack

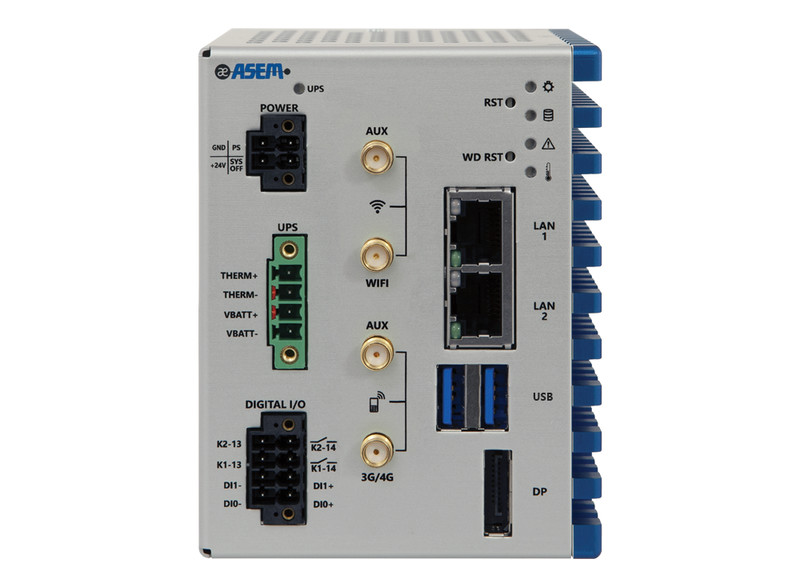

BM122

Interfaces:

2 x Ethernet 10/100/1000Mbps

2 x USB 3.0

4G Global modem

Wifi

1 x Display Port dual mode

2 x digital output

2 x digital input

Options:

UPS with external battery pack

Technical Data

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

4 x RJ45 ports
(4 x Intel® I210)

10/100/1000 Mbps Ethernet switch

-

USB

4 x USB 3.0
(Type-A)

SERIAL

1 x RS232/422/485 (DB15M)

WI-FI

Standard

-

Features

-

Security

-

Rx Sensitivity

-

Antenna

-

CELLULAR NETWORK

Standard

-

Antenna

-

SIM

-

DIGITAL INPUT

2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

24VDC (18÷32VDC) isolated

Remote power up input
Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x78mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, UL 61010-1
UL 61010-2-201

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

2 x RJ45 ports
(2 x Intel® I210)

10/100/1000 Mbps Ethernet switch

1 x unmanaged (Intel® I210) 4 x RJ45 ports

USB

4 x USB 3.0 (Type-A)

SERIAL

WI-FI

Standard

-

Features

-

Security

-

Rx Sensitivity

-

Antenna

-

CELLULAR NETWORK

Standard

-

Antenna

-

SIM

-

DIGITAL INPUT

2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

  • 24VDC (18÷32VDC) isolated

  • Remote power up input Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x78mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, UL 61010-1

UL 61010-2-201

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

2 x RJ45 ports
(2 x Intel® I210)

10/100/1000 Mbps Ethernet switch

-

USB

2 x USB 3.0
(Type-A)

SERIAL

-

WI-FI

Standard

IEEE 802.11 a/b/g/n + Bluetooth V4.0 LE/ V3.0+HS/ V2.1+EDR

Features

Client / Access Point mode (Wi-Fi)

Security

64/128-Abits WEP, WPA, WPA2

Rx Sensitivity

802.11a: -73dBm / 802.11g: -74dBm / 802.11n(2,4GHz): -72dBm@HT20, -69dBm@HT40 / 802.11n(5GHz): -69dBm@HT20, -68dBm@HT40 (Wi-Fi) <0.1% BER at -70dBm (Bluetooth)

Antenna

2 x RP-SMA-F

CELLULAR NETWORK

Standard

2G/3G/4G LTE CAT4 Multiband up to 50Mbps upload / 150Mbps download

Antenna

1 x SMA-F connector

SIM

1x SIM card socket push-push type

DIGITAL INPUT

2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

  • 24VDC (18÷32VDC) isolated

  • Remote power up input Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x78mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, UL 61010-1

UL 61010-2-201
