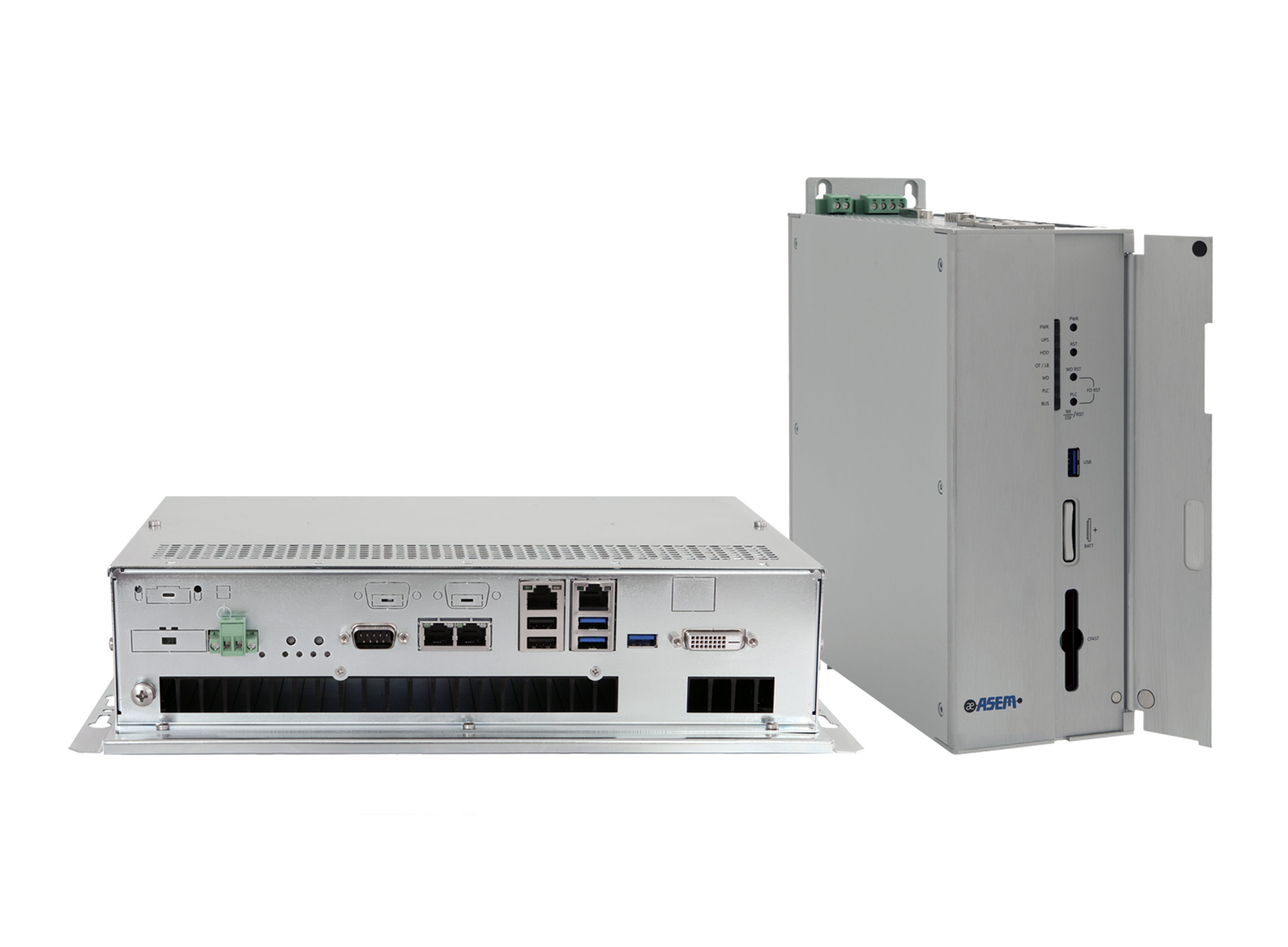

PB3400/3600 & BM3400/3600

Fanless wall/book mounting IPCs with Intel® Skylake and Intel® Kaby Lake platforms

Lifecycle status: Active

Intel® Celeron® G3900E dual-core 2,40 GHz, Intel® Core™ i3-6100E dual-core 2,70 GHz, Intel® Core™ i5-6440EQ quad-core 2,70 GHz and Intel® Core™ i7-6820EQ quad-core 2,80 GHz processors of Skylake H generation (only xx3400)
Intel® Core™ i3-7100E dual-core 2,90 GHz, Intel® Core™ i5-7440EQ quad-core 2,70 GHz and Intel® Core™ i7-7820EQ quad-core 3,00 GHz processors of Kaby Lake H generation (only xx3600)
RAM up to 32GB
Built-in UPS with external battery pack (optional)
Built-in supersapacitors μUPS, with 256kB MRAM for retentive data management (optional)
Available in S0 version with the possibility to install additional interfaces, S2 version with two PCI or PCIe expansion slots, D1 and D2 versions, respectively with 1 and 2 slots for the installation of extractable 2.5” SSDs/HDDs units (D1 version only BM3400/3600)
Available with additional RVL interface for remotation of the DVI-D and USB 2.0 signals up to 100m (optional)
Integrated UBIQUITY software for remote assistance via end-to-end VPN connection
FactoryTalk® Optix™ software for HMI and Edge Computing applications (optional)
CODESYS software for control, motion and CNC SoftPLC applications (optional)
