BM120 - BM121 - BM122
Book mounting IPC ultracompatto con piattaforma Intel Apollo Lake
I sistemi fanless BM120, BM121 e BM122 sono dei sistemi compatti basati sui processori Intel® Atom™ x5- 3930 1.3GHz (1.8GHz Burst) e x7-E3950 1.6GHz (2.0GHz Burst) a 64bit della piattaforma System On Chip (SoC) Intel® Apollo Lake™.
I sistemi sono caratterizzati da un compatto chassis in alluminio (100x100x78mm), che prevede le modalità di installazione book mounting e su guida DIN.
La motherboard prevede un connettore M.2 2242 key B per l’installazione di SSD SATA III e 2GB, 4GB o 8GB di RAM LP-DDR4 saldata.
Il BM120 ha quattro porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", quattro porte USB 3.0, un’interfaccia seriale RS232/422/485, due ingressi digitali, due uscite digitali e un’uscita video Display Port V1.2.
Il BM121 ha due porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", uno switch 4 porte Ethernet 10/100/1000Mbps, quattro porte USB 3.0, due ingressi digitali, due uscite digitali e un’uscita video Display Port V1.2.
Il BM122 ha due porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", due porte USB 3.0, due ingressi digitali, due uscite digitali, un’interfaccia Wi-Fi/Bluetooth, un modem 2G/3G/4G (LTE) e un’uscita video Display Port V1.2.
I sistemi BM120, BM121 e BM122 hanno l'alimentazione isolata a 24VDC e, opzionalmente, l'UPS con elettronica integrata e pacco batterie esterno.
Modelli

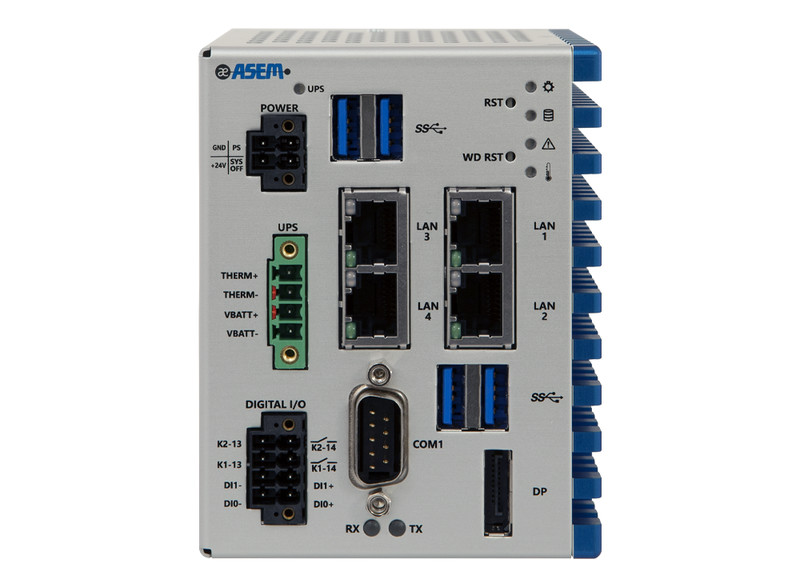

BM120
Interfacce:
4 x Ethernet 10/100/1000Mbps
4 x USB 3.0
1 x Seriale RS232/422/485
1 x Display Port dual mode
2 x digital output
2 x digital input
Opzioni:
UPS con batteria esterna

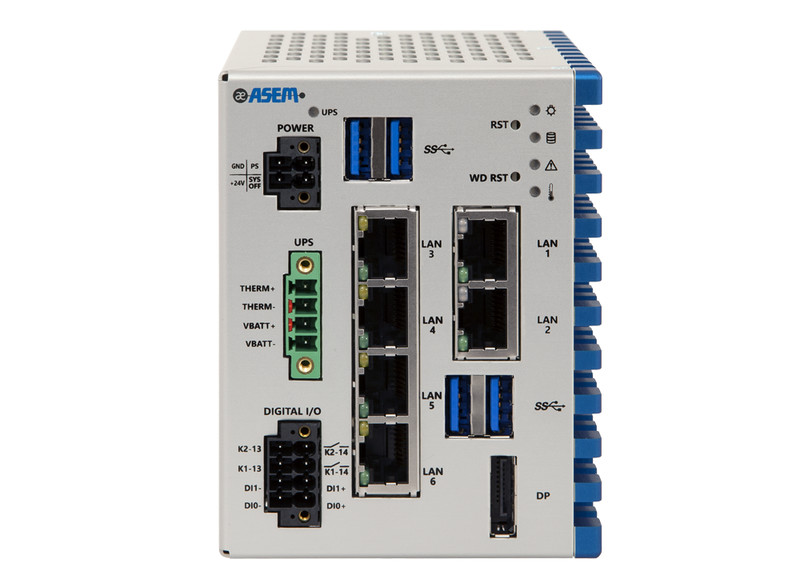

BM121
Interfacce:
2 x Ethernet 10/100/1000Mbps
1 x Switch Ethernet 10/100/1000Mbps a 4 porte
4 x USB 3.0
1 x Display Port dual mode
2 x digital output
2 x digital input
Opzioni:
UPS con batteria esterna

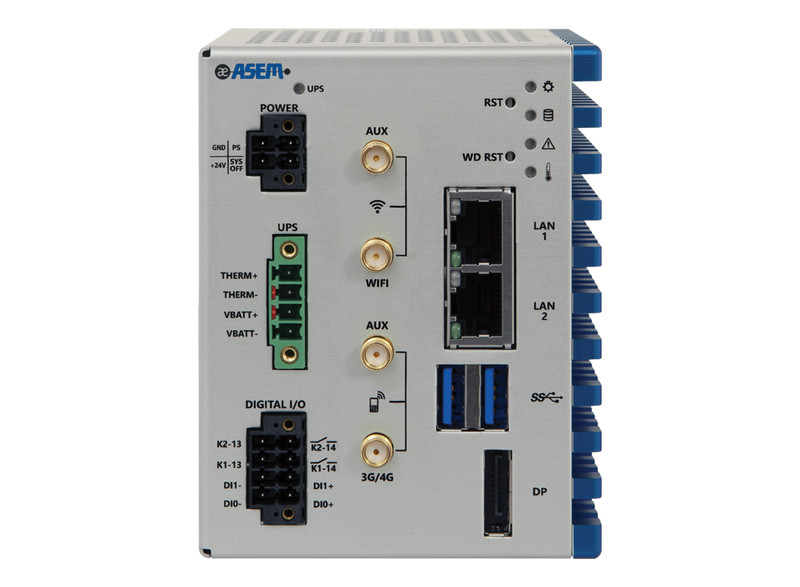

BM122
Interfacce:
2 x Ethernet 10/100/1000Mbps
2 x USB 3.0
Modem 4G Global
Wifi
1 x Display Port dual mode
2 x digital output
2 x digital input
Opzioni:
UPS con batteria esterna
Technical Data
PROCESSOR (soldered)
Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm
Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm
VIDEO CONTROLLER
- Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz
Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz
SYSTEM MEMORY - RAM
2GB or 4GB or 8GB (1 x LP-DDR4 soldered)
MASS STORAGE
1 x onboard connector of M.2 size 2242 key B SSD SATA III
LAN
10/100/1000 Mbps LAN port
10/100/1000 Mbps Ethernet switch
-
USB
SERIAL
1 x RS232/422/485 (DB15M)
WI-FI
Standard
-
Features
-
Security
-
Rx Sensitivity
-
Antenna
-
CELLULAR NETWORK
Standard
-
Antenna
-
SIM
-
DIGITAL INPUT
2 x Digital input
DIGITAL OUTPUT
2 x Digital output
VIDEO OUTPUT
1 x Display Port V1.2 (no audio)
POWER SUPPLY INPUT
24VDC (18÷32VDC) isolated
POWER SUPPLY OPTIONS
Integrated UPS with external battery pack
CASE
Installation
Book or DIN rail mounting
Material
Aluminium Alloy
Dimensions
100x100x78mm
O.S. CERTIFIED
OPERATING TEMPERATURE
0°÷50°C
APPROVALS
PROCESSOR (soldered)
Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm
Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm
VIDEO CONTROLLER
- Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz
Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz
SYSTEM MEMORY - RAM
2GB or 4GB or 8GB (1 x LP-DDR4 soldered)
MASS STORAGE
1 x onboard connector of M.2 size 2242 key B SSD SATA III
LAN
10/100/1000 Mbps LAN port
10/100/1000 Mbps Ethernet switch
1 x unmanaged (Intel® I210) 4 x RJ45 ports
USB
4 x USB 3.0
(Type-A)
SERIAL
WI-FI
Standard
-
Features
-
Security
-
Rx Sensitivity
-
Antenna
-
CELLULAR NETWORK
Standard
-
Antenna
-
SIM
-
DIGITAL INPUT
2 x Digital input
DIGITAL OUTPUT
2 x Digital output
VIDEO OUTPUT
1 x Display Port V1.2 (no audio)
POWER SUPPLY INPUT
24VDC (18÷32VDC) isolated
Remote power up input Power status output
POWER SUPPLY OPTIONS
Integrated UPS with external battery pack
CASE
Installation
Book or DIN rail mounting
Material
Aluminium Alloy
Dimensions
100x100x78mm
O.S. CERTIFIED
OPERATING TEMPERATURE
0°÷50°C
APPROVALS
CE, UL 61010-1
PROCESSOR (soldered)
Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm
Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm
VIDEO CONTROLLER
- Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz
Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz
SYSTEM MEMORY - RAM
2GB or 4GB or 8GB (1 x LP-DDR4 soldered)
MASS STORAGE
1 x onboard connector of M.2 size 2242 key B SSD SATA III
LAN
10/100/1000 Mbps LAN port
10/100/1000 Mbps Ethernet switch
-
USB
SERIAL
-
WI-FI
Standard
IEEE 802.11 a/b/g/n + Bluetooth V4.0 LE/ V3.0+HS/ V2.1+EDR
Features
Client / Access Point mode (Wi-Fi)
Security
64/128-Abits WEP, WPA, WPA2
Rx Sensitivity
802.11a: -73dBm / 802.11g: -74dBm / 802.11n(2,4GHz): -72dBm@HT20, -69dBm@HT40 / 802.11n(5GHz): -69dBm@HT20, -68dBm@HT40 (Wi-Fi) <0.1% BER at -70dBm (Bluetooth)
Antenna
2 x RP-SMA-F
CELLULAR NETWORK
Standard
2G/3G/4G LTE CAT4 Multiband up to 50Mbps upload / 150Mbps download
Antenna
1 x SMA-F connector
SIM
1x SIM card socket push-push type
DIGITAL INPUT
2 x Digital input
DIGITAL OUTPUT
2 x Digital output
VIDEO OUTPUT
1 x Display Port V1.2 (no audio)
POWER SUPPLY INPUT
24VDC (18÷32VDC) isolated
Remote power up input Power status output
POWER SUPPLY OPTIONS
Integrated UPS with external battery pack
CASE
Installation
Book or DIN rail mounting
Material
Aluminium Alloy
Dimensions
100x100x78mm
O.S. CERTIFIED
OPERATING TEMPERATURE
0°÷50°C
APPROVALS
CE, UL 61010-1
