BM130 - BM131

Book mounting IPC ultracompatto con piattaforma Intel Apollo Lake

I sistemi fanless BM130 e BM131 sono dei sistemi compatti basati sui processori Intel® Atom™ x5-3930 1.3GHz (1.8GHz Burst) e x7-E3950 1.6GHz (2.0GHz Burst) a 64bit della piattaforma System On Chip (SoC) Intel® Apollo Lake™.


I sistemi sono caratterizzati da un compatto chassis in alluminio (100x100x100mm), che prevede le modalità di installazione book mounting e su guida DIN.
La motherboard prevede un connettore M.2 2242 key B per l’installazione di SSD SATA III e 2GB, 4GB o 8GB di RAM LPDDR4 saldata.

Il BM130 ha quattro porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", quattro porte USB 3.0, un’interfaccia seriale RS232/422/485, due ingressi digitali, due uscite digitali, un’interfaccia Wi-Fi/Bluetooth, un modem 2G/3G/4G (LTE) e un’uscita video Display Port V1.2.
Il BM131 ha due porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", uno switch 4 porte Ethernet 10/100/1000Mbps, quattro porte USB 3.0, due ingressi digitali, due uscite digitali, un’interfaccia Wi-Fi/ Bluetooth, un modem 2G/3G/4G (LTE) e un’uscita video Display Port V1.2.

I sistemi BM130 e BM131 hanno l'alimentazione isolata a 24VDC e, opzionalmente, l'UPS con elettronica integrata e pacco batterie esterno.

Modelli

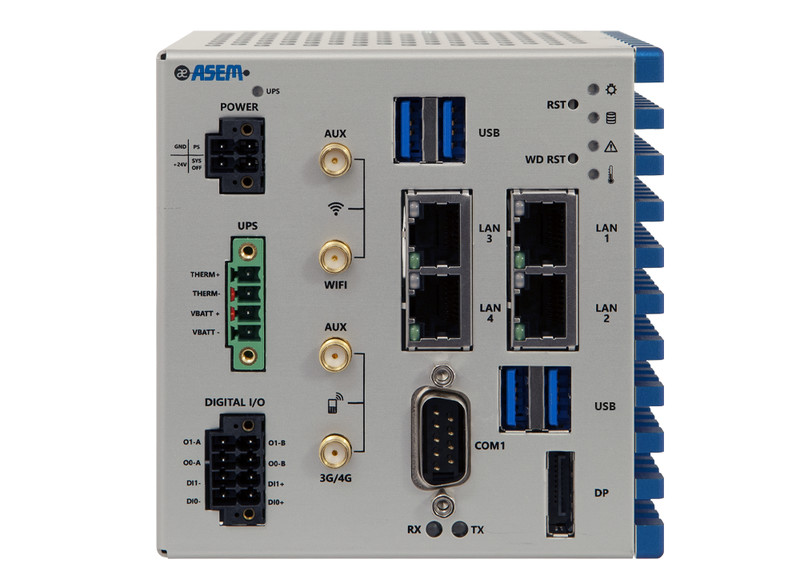

BM130

Interfacce:

4 x Ethernet 10/100/1000Mbps

4 x USB 3.0

1 x Seriale RS232/422/485

1 x Modem 4G Global

1 x Adapter WiFi/Bluetooth

1 x Display Port dual mode

2 x Digital output

2 x Digital input

Opzioni:

UPS con batteria esterna

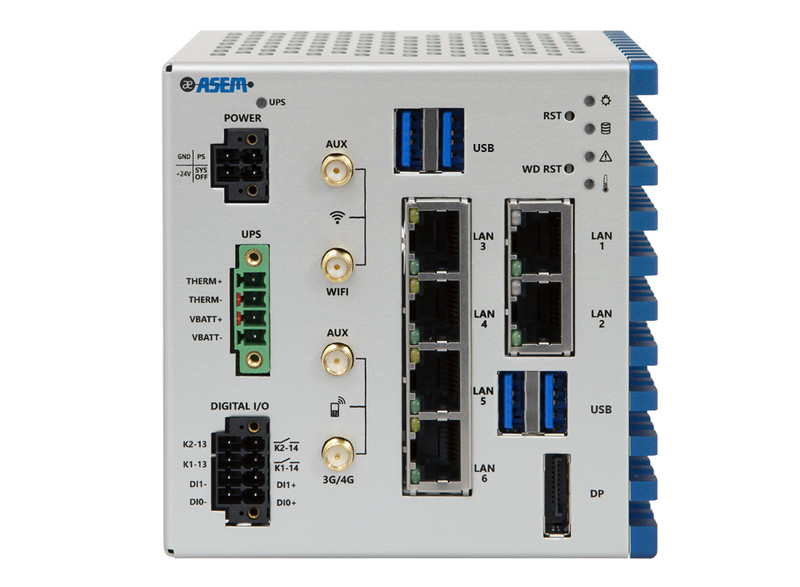

BM131

Interfacce:

2 x Ethernet 10/100/1000Mbps

1 x Switch Ethernet 10/100/1000Mbps a 4 porte

2 x USB 3.0

1 x Modem 4G Global

1 x Adapter WiFi/Bluetooth

1 x Display Port dual mode

2 x Digital output

2 x Digital input

Opzioni:

UPS con batteria esterna

Technical Data

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

4 x RJ45 ports
(4 x Intel® I210)

10/100/1000 Mbps Ethernet switch

-

USB

4 x USB 3.0
(Type-A)

SERIAL

1 x RS232/422/485 (DB15M)

WI-FI

Standard

IEEE 802.11 a/b/g/n + Bluetooth V4.0 LE/
V3.0+HS/ V2.1+EDR

Features

Client / Access Point mode (Wi-Fi)

Security

64/128-Abits WEP, WPA, WPA2

Rx Sensitivity

802.11a: -73dBm / 802.11g: -74dBm /
802.11n(2,4GHz): -72dBm@HT20,
-69dBm@HT40 / 802.11n(5GHz): -69dBm@HT20,
-68dBm@HT40 (Wi-Fi)
<0.1% BER at -70dBm (Bluetooth)

Antenna

2 x RP-SMA-F

CELLULAR NETWORK

Standard

  • Standards: 2G/3G/3G + EDGE/HSPA
    up to 5,76Mbps upload / 21,6Mbps download
    Regions: All Continents

  • Standards: 2G/3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: Europe, Latin America, Asia, Africa,
    Oceania

  • Standards: 3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: North America, Latin America

Antenna

1 x SMA-F connector

SIM

1x SIM card socket push-push type

DIGITAL INPUT

2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

24VDC (18÷32VDC) isolated

Remote power up input
Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book, wall or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x100mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, UL 61010-1
UL 61010-2-201

PROCESSOR (soldered)

  • Intel® Atom™ x5-E3930 1.3GHz (1.8GHz Burst), 2 cores / 2 threads, 2MB L2 cache, 14nm

  • Intel® Atom™ x7-E3950 1.6GHz (2.0GHz Burst), 4 cores / 4 threads, 2MB L2 cache, 14nm

VIDEO CONTROLLER

  • Intel® HD Graphics 500 integrated in x5-E3930, 400/550MHz

  • Intel® HD Graphics 505 integrated in x7-E3950, 500/650MHz

SYSTEM MEMORY - RAM

2GB or 4GB or 8GB (1 x LP-DDR4 soldered)

MASS STORAGE

1 x onboard connector of M.2 size 2242 key B SSD SATA III

LAN

10/100/1000 Mbps LAN port

2 x RJ45 ports
(2 x Intel® I210)

10/100/1000 Mbps Ethernet switch

1 x unmanaged
(Intel® I210)
4 x RJ45 ports

USB

4 x USB 3.0
(Type-A)

SERIAL

-

WI-FI

Standard

IEEE 802.11 a/b/g/n + Bluetooth V4.0 LE/
V3.0+HS/ V2.1+EDR

Features

Client / Access Point mode (Wi-Fi)

Security

64/128-Abits WEP, WPA, WPA2

Rx Sensitivity

802.11a: -73dBm / 802.11g: -74dBm /
802.11n(2,4GHz): -72dBm@HT20,
-69dBm@HT40 / 802.11n(5GHz): -69dBm@HT20,
-68dBm@HT40 (Wi-Fi)
<0.1% BER at -70dBm (Bluetooth)

Antenna

2 x RP-SMA-F

CELLULAR NETWORK

Standard

  • Standards: 2G/3G/3G + EDGE/HSPA
    up to 5,76Mbps upload / 21,6Mbps download
    Regions: All Continents

  • Standards: 2G/3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: Europe, Latin America, Asia, Africa,
    Oceania

  • Standards: 3G/4G LTE
    up to 50Mbps upload / 100Mbps download
    Regions: North America, Latin America

Antenna

1 x SMA-F connector

SIM

1x SIM card socket push-push type

DIGITAL INPUT


2 x Digital input

DIGITAL OUTPUT

2 x Digital output

VIDEO OUTPUT

1 x Display Port V1.2 (no audio)

POWER SUPPLY INPUT

  • 24VDC (18÷32VDC) isolated

  • Remote power up input
    Power status output

POWER SUPPLY OPTIONS

Integrated UPS with external battery pack

CASE

Installation

Book, wall or DIN rail mounting

Material

Aluminium Alloy

Dimensions

100x100x100mm

O.S. CERTIFIED

Microsoft Windows 10 IoT Enterprise 2016/2019 64 bit
Linux

OPERATING TEMPERATURE

0°÷50°C

APPROVALS

CE, UL 61010-1
UL 61010-2-201
