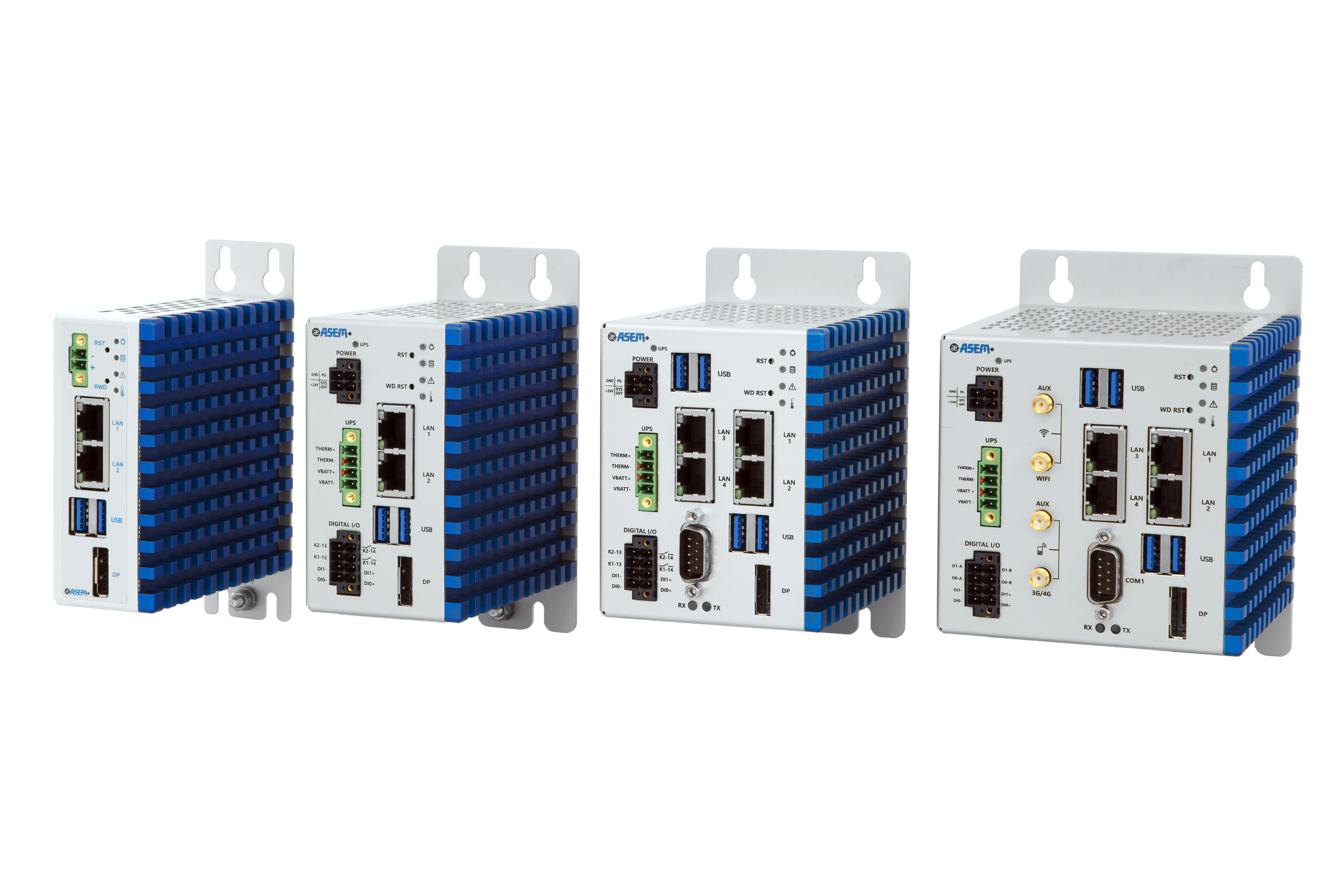

Famiglia BM1XY
Fanless book mounting IPC ultra compatti con piattaforma Intel® Apollo Lake
HIGHLIGHTS
- Design compatto (100x100x39,4mm per BM100, 100x100x58,4mm per BM110, 100x100x79mm per BM12X, 100x100x100mm per BM13X)
- Chassis in alluminio anodizzato
- Processori Intel® Atom™ x5-E3930 dual-core 1,30 GHz e x7-E3950 quad-core 1,60 GHz della generazione SoC Apollo Lake
- RAM fino a 8GB
- Disponibili con switch Gigabit Ethernet a 4 porte (solo BM121 e BM131)
- Disponibili con interfacce Wi-Fi/Bluetooth e modem 2G/3G/4G-LTE (solo BM122, BM130 e BM131)
- Disponibile montaggio a guida DIN
- Disponibile montaggio a parete (solo BM100)
- UPS integrato con kit batterie esterno (opzionale)
- Software UBIQUITY integrato per l'assistenza remota attraverso connessione VPN end-to-end
- Software FactoryTalk® Optix™ per applicazioni HMI e Edge Computing (opzionale)
Modelli

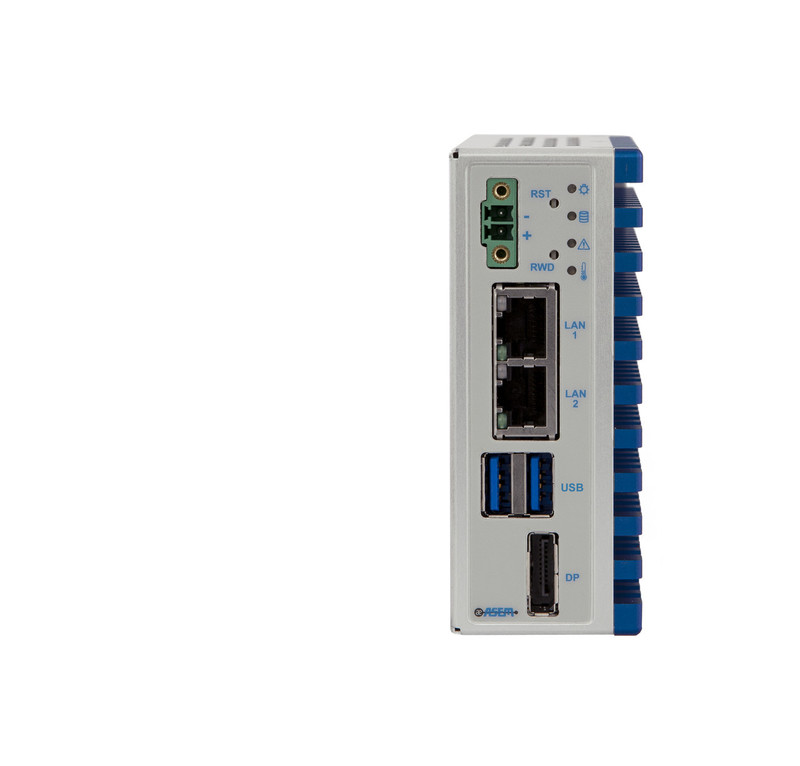

BM100
Interfacce:
2x Gigabit Ethernet (RJ45)
2x USB 3.0 (Type-A)
1x DisplayPort++

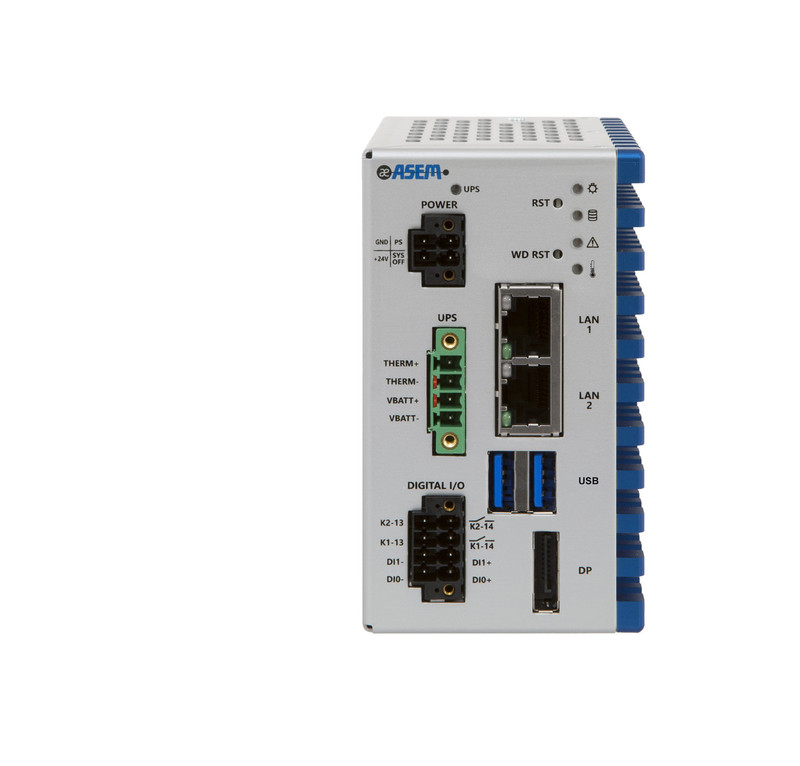

BM110
Interfacce:
2x Gigabit Ethernet (RJ45)
2x USB 3.0 (Type-A)
1x DisplayPort++
2x Digital Output
2x Digital Input

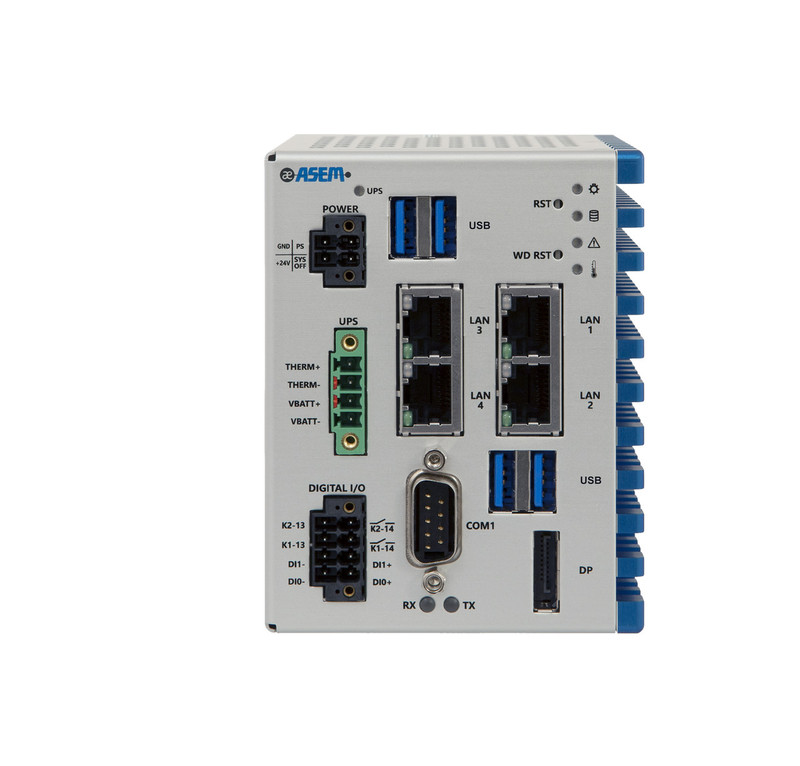

BM120
Interfacce:
4x Gigabit Ethernet (RJ45)
4x USB 3.0 (Type-A)
1x RS232/422/485 (DB9M)
1x DisplayPort++
2x Digital Output
2x Digital Input

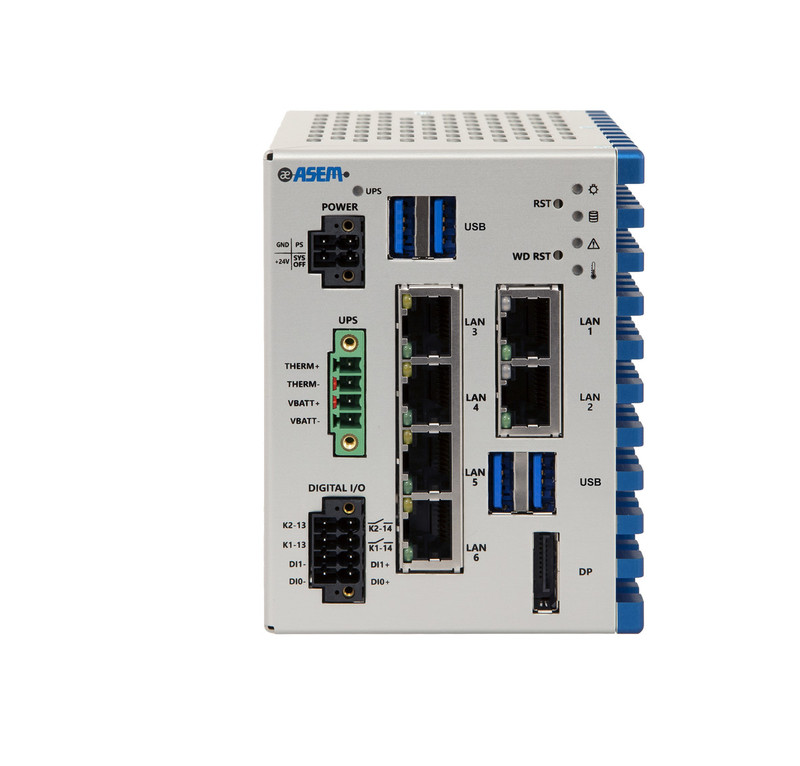

BM121
Interfacce:
2x Gigabit Ethernet (RJ45)
1x Unmanaged Gigabit Switch (4x RJ45)
4x USB 3.0 (Type-A)
1x DisplayPort++
2x Digital Output
2x Digital Input
BM122
Interfacce:
2x Gigabit Ethernet (RJ45)
2x USB 3.0 (Type-A)
1x DisplayPort++
2x Digital Output
2x Digital Input
2x RP-SMA Female connector (Wi-Fi antennas)
2x SMA Female connector (3G/4G antennas)

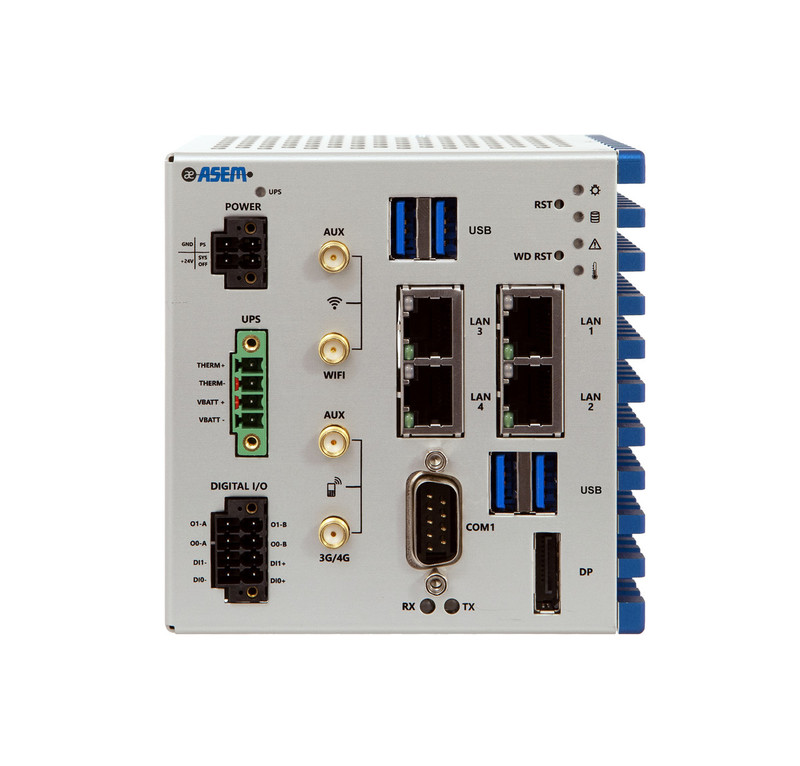

BM130
Interfacce:
4x Gigabit Ethernet (RJ45)
4x USB 3.0 (Type-A)
1x RS232/422/485 (DB9M)
1x DisplayPort++
2x Digital Output
2x Digital Input
2x RP-SMA Female connector (Wi-Fi antennas)
2x SMA Female connector (3G/4G antennas)

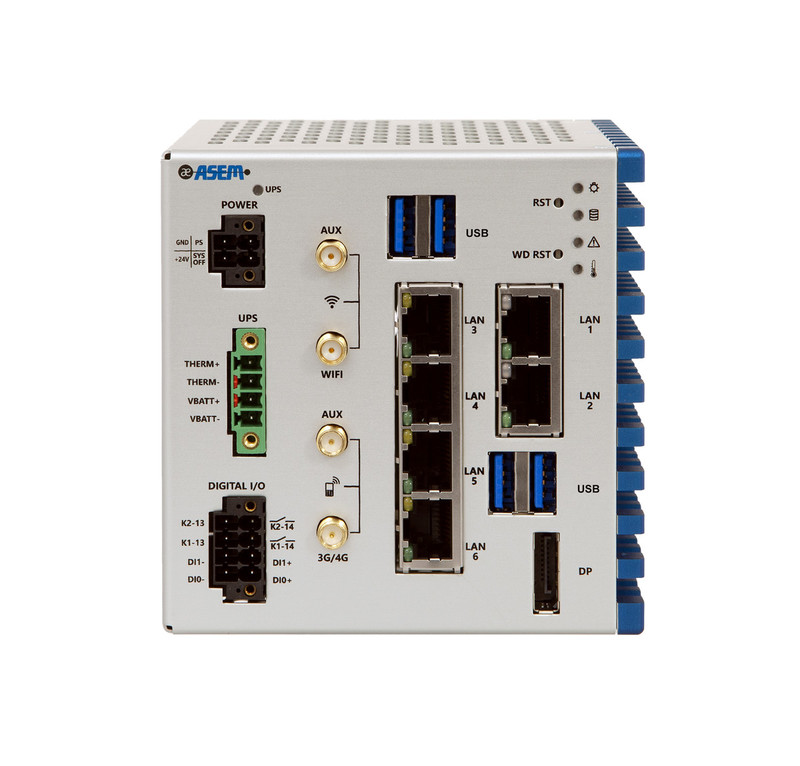

BM131
Interfacce:
2x Gigabit Ethernet (RJ45)
1x Unmanaged Gigabit Switch (4x RJ45)
4x USB 3.0 (Type-A)
1x DisplayPort++
2x Digital Output
2x Digital Input
2x RP-SMA Female connector (Wi-Fi antennas)
2x SMA Female connector (3G/4G antennas)
Tabella di confronto
Technical data
Area riservata
Accedi alla tua area riservata per scaricare i contenuti protetti a te dedicati. Se non hai ancora un account ASEM, registrati qui.
- BM1XY family IT.pdf (3.87 MB)
- CATALOGO PC e Monitor 2023 - IT LQ.pdf (71.81 MB)
- UBIQUITY 2022_IT.pdf (7.31 MB)
- BM100 CF-CE-001-A.pdf (58.95 KB)
- BM100 CF-UKCA-001-A.pdf (95.35 KB)
- BM100 CertificateofCompliance.pdf (145.83 KB)
- BM110 BM120 BM121 CF-CE-001-A.pdf (106.77 KB)
- BM122 BM130 BM131 CF-CE-001-A.pdf (102.35 KB)
- BM123 CF-UKCA-001-A.pdf (93.42 KB)
- BM1XY CF-UL-001-A.pdf (163.52 KB)
