BM3400 - BM3600
Book mounting IPC ad alte prestazioni con piattaforma Intel Skylake H o Kaby Lake H
La famiglia di Book Mounting IPC fanless BM3400 è basatasui processori dual e quad core Celeron e Core i3, i5, i7 di sesta generazione della piattaforma Intel® Skylake™ H e la famiglia BM3600 sui processori i3, i5, i7 di settima generazione della piattaforma Kaby Lake™ M. I BM3400 e i BM3600 sono caratterizzati da un robusto chassis in alluminio curato in ogni dettaglio estetico ed ergonomico.
La motherboard "all in one" include, con accesso superiore, quattro porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", due porte USB 3.0, due USB 2.0, un'interfaccia seriale RS232 e un'uscita video DVI-D; con accesso frontale una porta USB 3.0, uno slot per CFast SATA III, uno slot per la batteria di sistema estraibile, i LED di segnalazione e, opzionalmente, uno o due cassetti estraibili per memorie di massa.
La motherboard ha anche un connettore mSATA per SSD SATA III, due connettori SATA III per SSD/HDD da 2,5", la possibilità di configurare i supporti di memoria in RAID 0 o 1, RAM fino a 32 GB con due moduli SODIMM DDR4e un connettore interno per l’installazione di interfacce aggiuntive seriali, USB, Fieldbus e di remotazione dei segnali video e USB 2.0 fino a 100 metri (Remote Video Link). Opzionalmente, un kit di ventilazione forzata è disponibile, per assicurare la temperatura operativa 0°C ÷50°C con il processore Core i7 o con schede di espansione, con un consumo totale che non supera i 20W.
I sistemi BM3400 e BM3600 hanno l'alimentazione isolata a 24 VDC e opzionalmente l’UPS con elettronica integrata e pacco batterie esterno.
Sono disponibili due versioni, S0 con la possibilità di installare interfacce aggiuntive ed S2 con due slot PCI o PCIe x4 e S3 con due slot PCIe x4 e un PCIe x4 e un PCIe x1.
Technical Data
PROCESSORS
BM3400
Intel® Celeron G3900E 2.40GHz 64bit, 2 cores / 2 threads, 2MB Smart cache
BM3600
Intel® Core i3-7100E 2.90GHz 64bit, 2 cores / 4 threads, 3MB Smart cache
CHIPSET
BM3400
Intel® HM170 PCH (Platform Controller Hub)
BM3600
Intel® HM175 PCH (Platform Controller Hub)
S2 versions with 2x PCIe x4
Intel® CM236 PHC (Platform Controller Hub)
VIDEO CONTROLLER
BM3400
Intel® HD Graphics 510 integrated in Celeron processor ▪ 350MHz/950MHz ▪ DirectX 12 and OpenGL 4.4 support
BM3600
Intel® HD Graphics 630 integrated in Core i3 processor ▪ 350MHz/950MHz ▪ DirectX 12 and OpenGL 4.5 support
SYSTEM MEMORY - RAM
4GB (1 x SODIMM DDR4 module) or 8GB or 16GB or 32GB (2 x SODIMM DDR4 modules)
TPM
TPM module (optional)
MASS STORAGE
S0 / S2
S0
S2

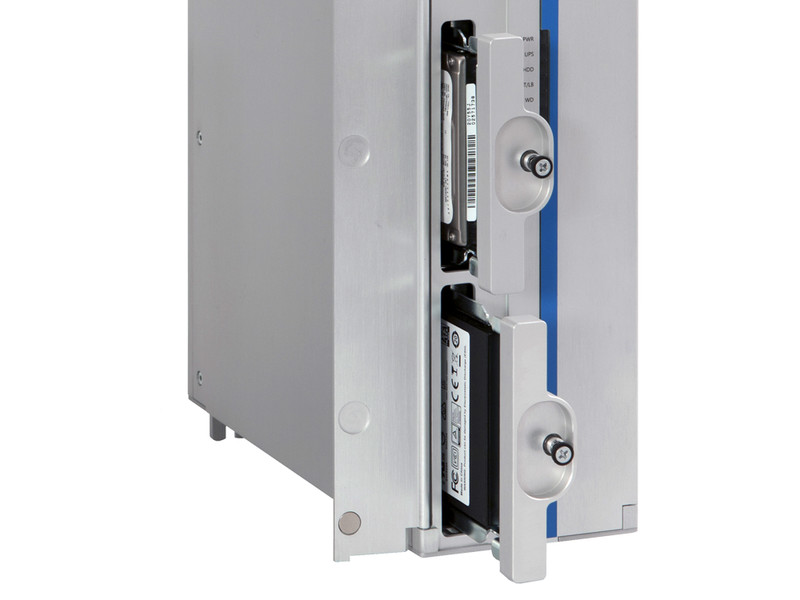

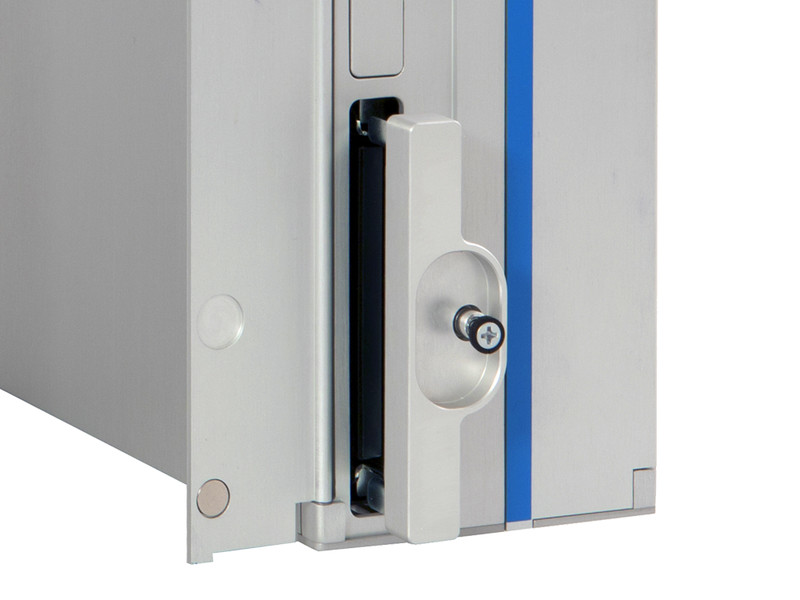

onboard connectors for max 2 x SSD/HDD 2.5" SATA III with internal installation kit or with front extractable drawers
LAN
4 x LAN 10/100/1000Mbps top (RJ45 - 3 x Intel® I210 + 1 x Intel® I219LM)
USB
1 x USB 3.0 front (Type-A)
SERIAL
1 x RS232 (DB9M)
BATTERY
1 x CR2032 Removable front access
VIDEO OUTPUT
1 x DVI-D, top
ADD-ON INTERFACES
Position A
- 1 x RS232/422/485 (DB15M) + 1 x USB 2.0 (Type-A)
1 x RS232/422/485 (DB15M) isolated + 1 x USB 2.0 (Type-A)
2 x RS232 (DB9M)
2 x USB 2.0 (Type-A)
1 x NETcore X fieldbus boards for EtherCAT, EtherNet IP, PROFINET, PROFIBUS, CANopen protocols
Position B
- 1 x connector Remote Video Link (RJ45 - RVL OUT)
2 x connectors Remote Video Link (RJ45 - RVL OUT)
EXPANSION SLOTS S2
2 x PCIe x4 or 1 x PCI + 1 x PCIe x4 (5 Gb/s), max 10W total
VENTILATION (optional)

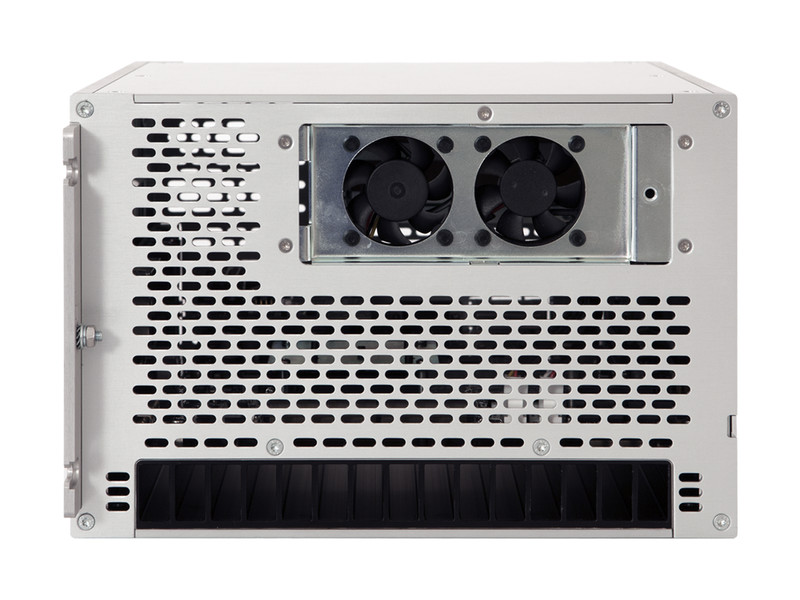

Forced ventilation kit for 0°C÷50°C operating temperature with Core i7 processors or expansion card with max 20W total
POWER SUPPLY INPUT
24VDC (18÷32VDC) isolated with UPS (optional) with external battery pack
CASE
Installation
Material
Aluminium Alloy 6082/5754/5056
O.S. CERTIFIED
Microsoft Windows 7 Pro/Ultimate 32/64bit (BM3400)
OPERATING TEMPERATURE
without forced ventilation: 0°C÷50°C, 0°C÷45°C with HDD 24x7 or Core i7
with forced ventilation: 0°C÷50°C, 0°C÷45°C with HDD 24x7
APPROVALS
CE, cULus LISTED (61010)
