BM2200

Book mounting IPC con piattaforma Intel Bay Trail

  • UBIQUITY inside
  • Remote Video Link

Il Book Mounting IPC fanless BM2200 è basato sul processore a basso consumo Celeron J1900 quad core 2GHz a 64 bit della piattaforma System On Chip (SoC) Intel® Bay Trail™. I BM2200 sono caratterizzati da un robusto chassis in alluminio curato in ogni dettaglio estetico ed ergonomico.


La motherboard "all in one" include, con accesso superiore, due porte USB 2.0 due porte Ethernet  10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", un’uscita video DVI-I (DVI-D + VGA) o in alternativa una uscita Remote Video Link (RJ45) per la remotazione fino a 100m di segnali video e USB; con accesso frontale, una porta USB 3.0, uno slot per CFast SATA II, uno slot per la batteria di sistema estraibile e i LED di segnalazione.


La motherboard ha anche un connettore mSATA per SSD SATA II, un connettore SATA II per un SSD/HDD 2,5", RAM fino a 8 GB con un modulo SODIMM DDR3 e un connettore interno per l’installazione di interfacce seriali e LAN aggiuntive.


I sistemi BM2200 hanno l'alimentazione isolata a 24 VDC e opzionalmente l’UPS con elettronica integrata e pacco batterie esterno.

Technical data

PROCESSOR

Intel® Celeron J1900 2.00Ghz (2.42GHz Burst) a 64 bit, 4 cores / 4 threads, 2MB L2 cache, soldered

VIDEO CONTROLLER

Intel® HD Graphics integrated in microprocessor, 688MHz Clock 854MHz Turbo, LVDS 8bit/colour digital interface

SYSTEM MEMORY - RAM

1GB or 2GB or 4GB or 8GB (1 x SODIMM DDR3 module)

TPM

TPM module (optional)

MASS STORAGE

1 bootable CFast SATA II slot onboard with front external access
1 x onboard connector for direct insertion of mSATA SSD SATA II or 1 x onboard connector for 2,5" SSD/HDD SATA II with internal installation kit

LAN

2 x LAN 10/100/1000Mbps (2 x Intel® I210)

USB

  • 1 x USB 3.0 front (Type-A)

  • 2 x USB 2.0 top (Type-A)

BATTERY

1 x CR2032 Removable from the front

VIDEO OUTPUT

1 x DVI-I top (DVI-D + VGA with adapter)

ADD-ON INTERFACES

(max 1)

  • 1 x RS232/422/485 (DB15M) + 2 x RS232 (DB9M)

  • 1 x RS232/422/485 (DB15M) isolated + 2 x RS232 (DB9M)

  • 1 x RS232/422/485 (DB15M) + 1 x LAN 10/100/1000Mbps (Intel® I210)

  • 1 x RS232/422/485 (DB15M) isolated + 1 x LAN 10/100/1000Mbps (Intel® I210)

POWER SUPPLY INPUT

24VDC (18÷32VDC) isolated with or without UPS (optional) with external battery pack

CASE

Installation

For wall book mounting

Material

Aluminium alloy 6082/5754/5056

O.S. CERTIFIED

Microsoft Windows 7 Pro/Ultimate 32/64 bit,

Microsoft Windows Embedded Standard 7E/7P 32/64 bit,
Microsoft Windows 8.1 Industry Pro 32/64 bit, Microsoft Windows 10 2016 64 bit , Microsoft Windows 10 IoT Enterprise 2016 64 bit

OPERATING TEMPERATURE

  • 0°C÷50°C

  • 0°C÷45°C with HDD 24x7

APPROVALS

CE, cULus LISTED (61010)

PROCESSOR

Intel® Celeron J1900 2.00Ghz (2.42GHz Burst) a 64 bit, 4 cores / 4 threads, 2MB L2 cache, soldered

VIDEO CONTROLLER

Intel® HD Graphics integrated in microprocessor, 688MHz Clock 854MHz Turbo, LVDS 8bit/colour digital interface

SYSTEM MEMORY - RAM

1GB or 2GB or 4GB or 8GB (1 x SODIMM DDR3 module)

TPM

TPM module (optional)

MASS STORAGE

1 bootable CFast SATA II slot onboard with front external access
1 x onboard connector for direct insertion of mSATA SSD SATA II or 1 x onboard connector for 2,5" SSD/HDD SATA II with internal installation kit

LAN

2 x LAN 10/100/1000Mbps (2 x Intel® I210)

USB

  • 1 x USB 3.0 front (Type-A)

  • 2 x USB 2.0 top (Type-A)

BATTERY

1 x CR2032 Removable from the front

VIDEO OUTPUT

RJ45 connector for the DVI-D and USB 2.0 signals remotation up to 100mt

ADD-ON INTERFACES

(max 1)

  • 1 x RS232/422/485 (DB15M) + 2 x RS232 (DB9M)

  • 1 x RS232/422/485 (DB15M) isolated + 2 x RS232 (DB9M)

  • 1 x RS232/422/485 (DB15M) + 1 x LAN 10/100/1000Mbps (Intel® I210)

  • 1 x RS232/422/485 (DB15M) isolated + 1 x LAN 10/100/1000Mbps (Intel® I210)

POWER SUPPLY INPUT

24VDC (18÷32VDC) isolated with or without UPS (optional) with external battery pack

CASE

Installation

For wall book mounting

Material

Aluminium alloy 6082/5754/5056

O.S. CERTIFIED

Microsoft Windows 7 Pro/Ultimate 32/64 bit,

Microsoft Windows Embedded Standard 7E/7P 32/64 bit,
Microsoft Windows 8.1 Industry Pro 32/64 bit, Microsoft Windows 10 2016 64 bit , Microsoft Windows 10 IoT Enterprise 2016 64 bit

OPERATING TEMPERATURE

  • 0°C÷50°C

  • 0°C÷45°C with HDD 24x7

APPROVALS

CE, cULus LISTED (61010)

Accessori

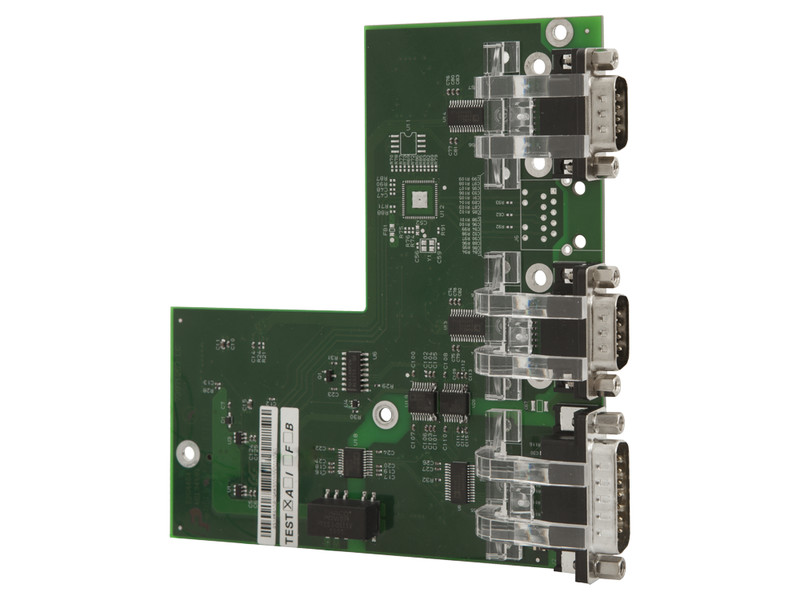

1 SER + 2 DB9

1 SIS + 2 DB9

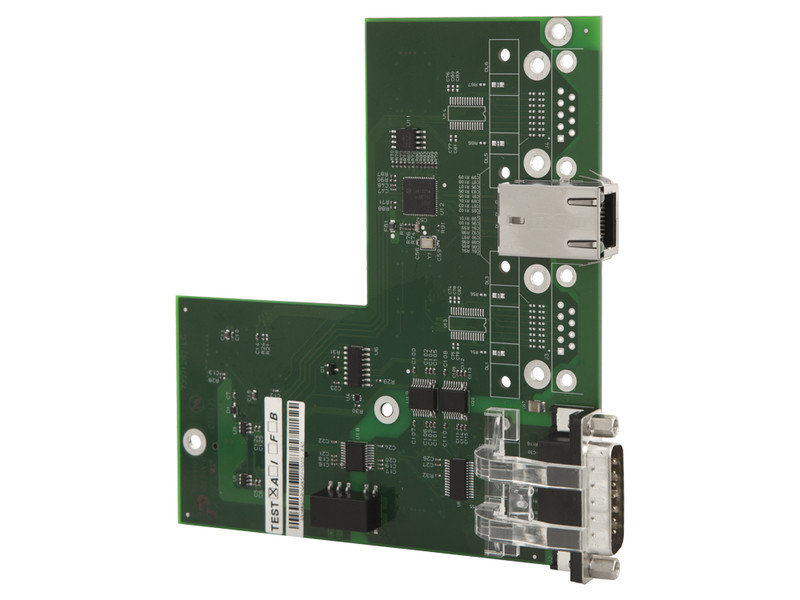

1 SER + 1 LAN

1 SIS + 1 LAN
