PB5400 - PB5600
Box IPC con ventilazione forzata ad alte prestazioni con piattaforme Intel Skylake S o Kaby Lake S
La famiglia di Box IPC PB5400 è basata sui processori Celeron e Core™ i3, i5, i7 di sesta generazione della piattaforma Intel® Skylake™ S e la famiglia PB5600 è invece basata sui processori Core™ i3, i5, i7 di settima generazione della piattaforma Kaby Lake™ S.
La motherboard "all in one" include quattro porte Ethernet 10/100/1000Mbps con supporto alle funzionalità "Jumbo Frame" e "Wake on Lan", quattro porte USB 3.0, un’interfaccia seriale RS232, un’uscita video DVI-D, uno slot per CFast SATA III ad accesso esterno posteriore, un connettore M.2 2242/2280 SSD key M per l’installazione di una SSD SATA III/PCIe x4, due connettori SATA III per l’installazione di SSD/ HDD da 2,5" (opzionalmente su cassetto estraibile), la possibilità di configurare le memorie di massa in RAID 0, 1, RAM fino a 32 GB con due moduli SODIMM DDR4 e due connettori interni per l’installazione di interfacce aggiuntive seriali, USB, Ehternet, Fieldbus e di remotazione dei segnali video e USB 2.0 fino a 100 metri (Remote Video Link).
I sistemi PB400 e PB5600 hanno l'alimentazione isolata a 24 VDC o in alternativa l’alimentazione 110/230 VAC.
Sono disponibili tre versioni, S0 con la possibilità di installare interfacce aggiuntive, S1 con uno slot PCIe x16 ed S3 con due slot PCIe x8 e un PCIe x4 oppure uno slot PCIe x16, uno PCIe x4 e uno PCIe x1.
Technical data
PROCESSOR
PB5400
Intel® Celeron G3900 2.8GHz, 2 cores, 2 Cores - 2 threads - 2MB smart cache
PB5600
Intel® Celeron G3930TE 2.7Ghz, 2 cores – 2 threads – 2MB smart cache
CHIPSET
Intel® C236 PCH (Platform Controller Hub)
VIDEO CONTROLLER
PB5400
Intel® HD Graphics 510 integrated in Celeron G3900, 350/950MHz Clock
PB5600
Intel® HD Graphics 610 integrated in Celeron G3930TE, 350/950MHz Clock
SYSTEM MEMORY - RAM
4GB (1 x SODIMM DDR4 module) /8GB/16GB/32GB (2 x SODIMM DDR4 modules)
TPM
TPM module (optional)
MASS STORAGE
1 x bootable CFast SATA III slot on board with external rear access
MASS STORAGE OPTIONS

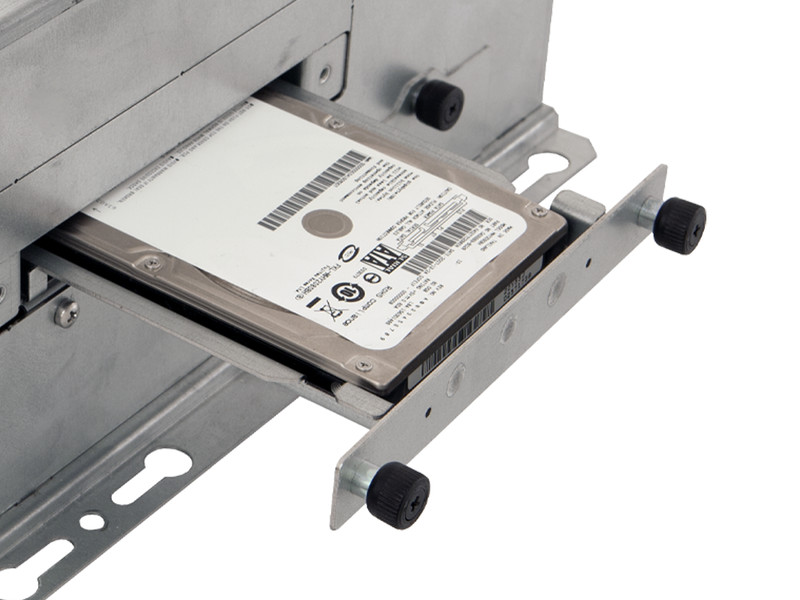

1 or 2 x extractable drawers for 2.5" units
RAID CONTROLLER
Integrated into chipset Intel® C236
LAN
4 x LAN 10/100/1000Mbps (RJ45 - 3 x Intel® I210 + 1 x Intel® I219LM)
USB
3 x USB 3.0, rear (Type-A)
SERIAL
1 x RS232 (DB9M)
VIDEO OUTPUT
1 x DVI-D
ADD-ON INTERFACES
Position A
1 x RS232/422/485 (DB15M)+ 1 x USB 2.0 (Type-A)
1 x RS232/422/485 (DB15M) isolated + 1 x USB 2.0 (Type-A)
2 x RS232 (DB9M)
2 x USB 2.0 (Type-A)
1 x LAN 10/100/1000Mbps (RJ45 - Intel® I210) + 1 x USB 2.0 (Type-A)
Position B
1 x LAN 10/100/1000Mbps (RJ45 - Intel® I210)
1 x RJ45 connector Remote Video Link (RVL OUT)
2 x RJ45 connectors Remote Video Link (RVL OUT)
2 x DP++ Video output (no audio)
1 x NETcore X fieldbus boards for EtherCAT, EtherNet IP, PROFINET, PROFIBUS, CANopen protocols
1 x Wireless/Bluetooth/Modem adapter
EXPANSION SLOTS
S1
1 x PCIe x16
S3
1x PCIe x16 + 1x PCIe x4 + 1x PCIe x1
POWER SUPPLY INPUT
24VDC (18÷32VDC) isolated
POWER SUPPLY OPTIONS
Kit for ATX mode power supply (optional)
O.S. CERTIFIED
PB5400
Microsoft Windows 10 IoT Enterprise 2019 64bit ▪ Microsoft Windows 10 IoT Enterprise 2016 64bit ▪ Windows 7 Pro/
PB5600
Microsoft Windows 10 IoT Enterprise 2019 64bit ▪ Microsoft Windows 10 IoT Enterprise 2016 64bit ▪ Linux
OPERATING TEMPERATURE
0°C÷50°C
0°C÷45°C with 24x7 HDD
APPROVALS
C , cULus LISTED (UL61010) pending
